Array Editor

The Array editor allows to add,remove or edit values inside a property array.

To open the editor press the array button on the desired property.

By using the control buttons in the toolbar it is possible to add or delete items.

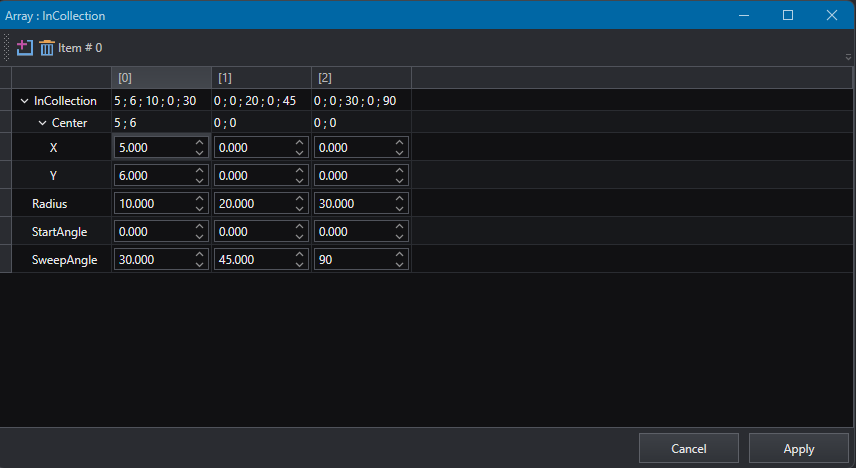

Array items are shown in the table, which allows to edit them within the cells.

In case the array type is a structure (for example Arc2D, Point2D, etc), inner fields are displayed and can be expanded or collapsed.
