Error handling

Different types of errors can be fired during job execution; when a tool encounters an error it produces a struct called ErrorState composed by a numeric code and a message used to describe the error.In OEVIS® users can use this information to change the Job behavior and perform appropriate actions.

In the following section the error types and codes are described and how they can be handled using Error Handler and Try/Catch function.

The ErrorState struct

The ErrorState is the main struct used to contain the error information and it is defined as followed:

struct ErrorState
{
    /// The error code associated with the current error state. 0 indicates no error.
    Int ERROR_CODE;

    /// The error message associated with the current error state.
    String ERROR_MESSAGE;
}
The error code can be used not only to identify the specific error and its meaning, but also to identify the error class it belongs to.The error class identifies a specific group of errors that are related to the same topic and it is defined with a numeric value; for each error class a range of possible error codes is defined. Following table shows the error classes implemented in OEVIS®.

Name Error class code Description
GenericError -1 Generic error type which can be used to handle all types of errors.
RuntimeError 0 Identifies execution related errors.These errors occur during tools execution (eg. runtime exceptions, oevislib errors, etc.). Codes [0...999].
LicenseError 1 Identifies license related errors (eg. add-on license issues). Codes [1000...1999].
DeviceError 2 Identifies device related errors.These errors occur at low level (eg. hardware malfunctions, camera issues, etc).Codes [2000...2999].
UserError 9 Identifies user custom error. User can use this type to define their own error codes. Codes [9000...9999].

The following table shows the list of pre-defined error codes in OEVIS®:

Name Code Description
Generic -1 Generic error with undefined error code or related to System generic exceptions.
NoError 0 No error.
LibRuntimeError 1 Exception that happens inside a function, during runtime in oevislib.
LibOutOfMemoryError 2 Exception caused when accessing unavailable memory in oevislib.
LibIOError 3 Exception caused by failure during input/output operations in oevislib.
LibOSError 4 Operating system exception in oevislib.
LibDomainError 5 Exception caused when an input parameter is outside the constraints defined in oevislib.
LibFatalError 6 Exception occurred for unknown reasons in oevislib.
LibLicenseError 99 Exception thrown in case of problems with the license in oevislib.
LibNullPtrError 100 Exception caused by a null pointer access in oevislib.
LibUnexpectedError 101 Exception caused by an unexpected error in oevislib.
LibUnknownError 102 Exception caused by an unknown error code in oevislib.
LibAssemblyLoadError 103 Exception caused when an assembly fails to load in oevislib.
SerializationError 20 Exception caused project save/load operations.
AssemblyError 30 Exception caused during assembly operations (dynamic object creation, method invocation etc.).
ToolExecutionError 200 Exception caused during tool execution.
ToolInvalidArgumentError 201 Exception caused by invalid arguments passed to a tool.
LicenseInvalidError 1000 The license is not found or corrupted.
LicenseAddOnError 1001 The add-on license is not found or corrupted.
DeviceGenericError 2000 Generic device error.
DeviceAcquisitionError 2001 Error related during device acquisition.
DeviceAcquisitionTimeoutError 2002 Device acquisition timeout.
DeviceNotImplementedError 2003 Feature or command not implemented or not available in device.
DeviceArgumentError 2004 Invalid argument provided to device for the parameter.
GenApiGenericError 2100 Generic GenApi error.
GenApiBadAllocError 2101 Bad allocation in GenApi.
GenApiInvalidArgumentError 2102 Invalid argument error in GenApi.
GenApiOutOfRangeError 2103 Out of range error in GenApi.
GenApiPropertyError 2104 Property access error in GenApi.
GenApiRuntimeError 2105 Runtime error in GenApi.
GenApiLogicError 2106 Logic error in GenApi.
GenApiAccessError 2107 Access error in GenApi.
GenApiTimeoutError 2108 Timeout error in GenApi.
GenTLGenericError 2200 Generic GenTL error.
CTILoadError 2201 CTI load error.
CTIMissingMethodError 2202 CTI missing method error.
InvalidParameterError 2203 Invalid parameter error in GenTL.
NotInitializedConsumerError 2204 Consumer is not initialized in GenTL.
GC_GenericError 2205 GenICam generic error.
GC_NotInitializedError 2206 GenICam not initialized error.
GC_NotImplementedError 2207 GenICam not implemented error.
GC_ResourceInUseError 2208 GenICam resource in use error.
GC_AccessDeniedError 2209 GenICam access denied error.
GC_InvalidHandleError 2210 GenICam invalid handle error.
GC_InvalidIDError 2211 GenICam invalid ID error.
GC_NoDataError 2212 GenICam no data error.
GC_InvalidParameterError 2213 GenICam invalid parameter error.
GC_IOError 2214 GenICam I/O error.
GC_TimeoutError 2215 GenICam timeout error.
GC_AbortError 2216 GenICam abort error.
GC_InvalidBufferError 2217 GenICam invalid buffer error.
GC_NotAvailableError 2218 GenICam not available error.
GC_InvalidAddressError 2219 GenICam invalid address error.
GC_BufferTooSmallError 2220 GenICam buffer too small error.
GC_InvalidIndexError 2221 GenICam invalid index error.
GC_ParsingChunkError 2222 GenICam parsing chunk error.
GC_InvalidValueError 2223 GenICam invalid value error.
GC_ResourceExhaustedError 2224 GenICam resource exhausted error.
GC_OutOfMemoryError 2225 GenICam out of memory error.
GC_BusyError 2226 GenICam busy error.
GC_CustomIDError 2227 GenICam custom ID error.
ModbusGenericError 2300 Generic Modbus error.
ModbusSerialPortNotOpenedError 2301 Serial port is not opened.
ModbusConnectionError 2302 Connection to Modbus device failed.
ModbusFunctionCodeNotSupportedError 2303 Modbus server returned error: function code not supported.
ModbusQuantityInvalidError 2304 Modbus server returned error: quantity invalid.
ModbusStartingAddressInvalidError 2305 Modbus server returned error: starting address and quantity invalid.
ModbusCRCCheckFailedError 2306 Modbus CRC check failed.
GenericUserError 9000 Generic user error.

Info

If the user wants to handle a custom error code the range [9000...9999] can be used.

The error data can be inspect in the Property inspector panel every time a tool fails the execution.

![Error](img/error01.png){ width="800" }

ErrorHandler Task

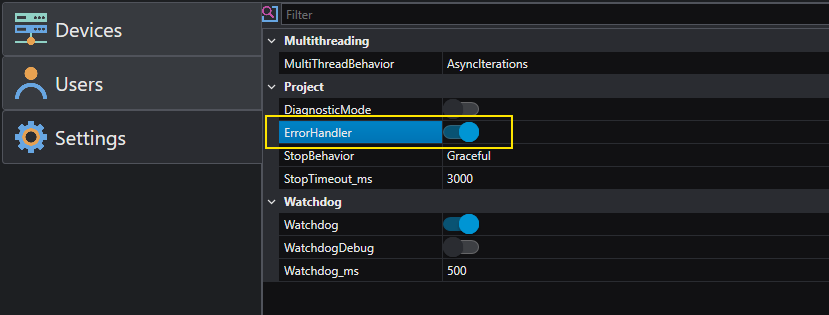

The ErrorHandler is a built-in task in the project that can be used to handle errors once it has been enabled in project settings.

Error
Error

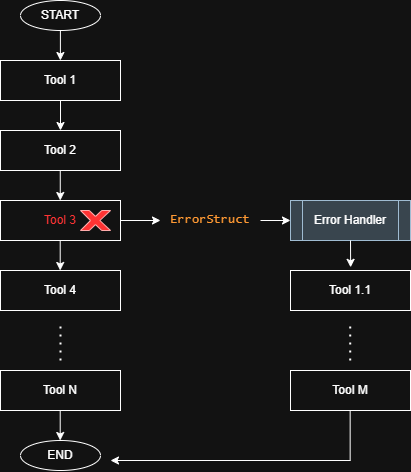

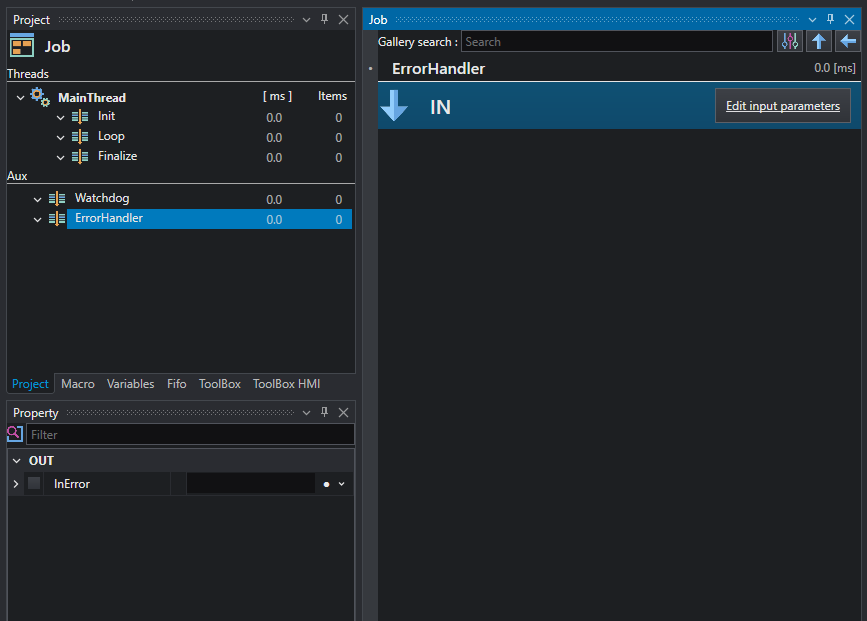

The ErrorHandler has only one input parameter of type ErrorStruct; when a tool fails the execution, the flow is interrupted and the ErrorHandler is invoked using the tool ErrorStruct as parameter for the handler.

Once the handler has been invoked the execution returns and flow continues.

Info

The ErrorHandler breaks the flow execution,this means that the tools after the one that triggered the ErrorHandler are not executed.

Error

Danger

The ErrorHandler cannot trigger itself (to prevent recursive overflow), so any error occurring inside the handler must be handled by other means, such as a Try/Catch block.

It is important to remember that the ErrorHandler has a global scope and can be triggered by any tool in the job, at any point.For this reason it is suggested to use it for general purpose handling; for a more robust and aimed behavior the Try\Catch function is preferred.

Try/Catch

The Try/Catch allows user to define a Job section where tools can be executed and in case of errors perform specific action inside the block.

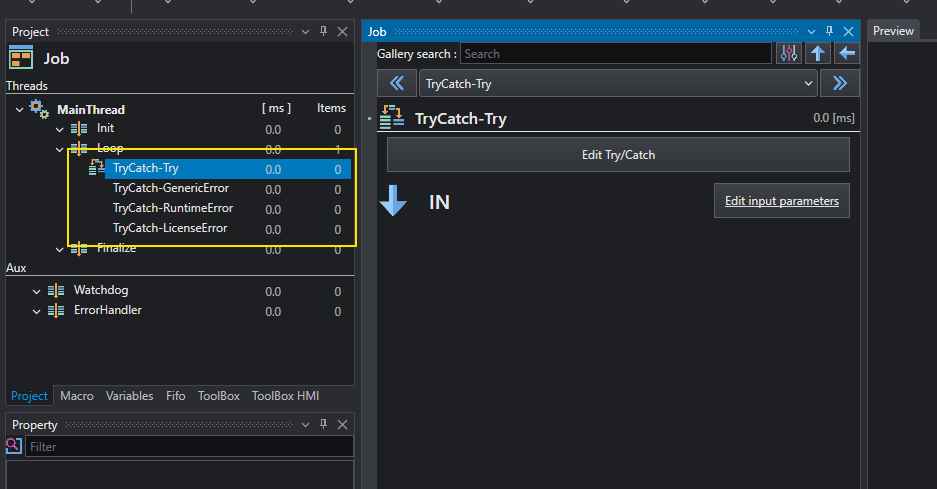

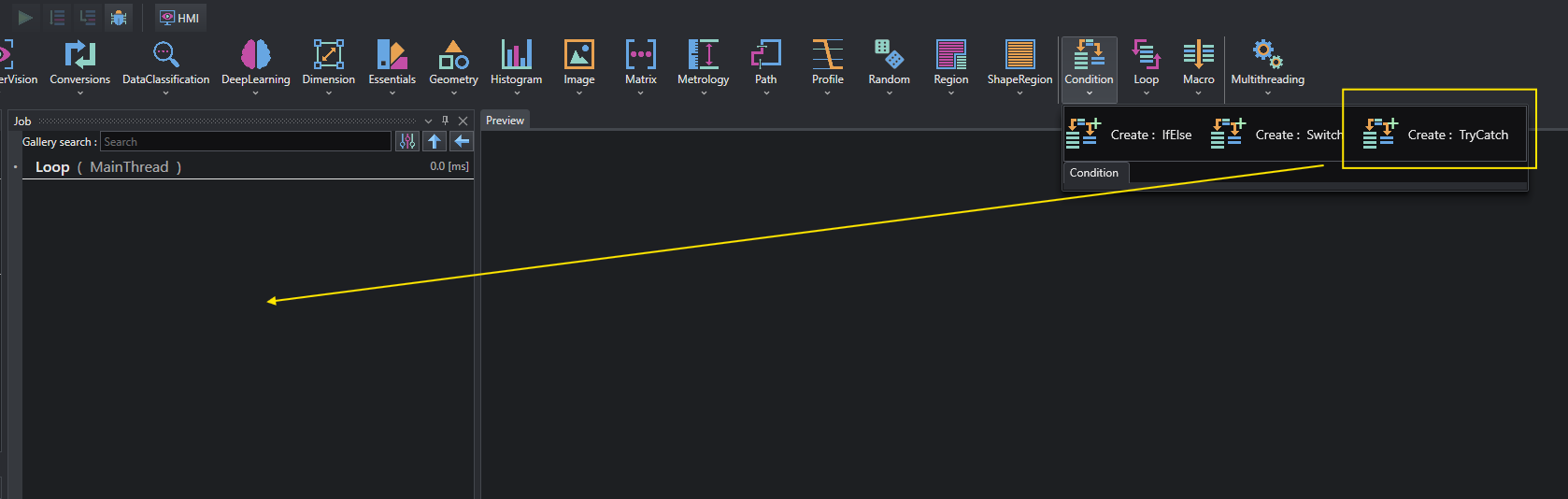

To create a new block, add it inside the Job from the gallery.

Error

The Try/Catch is designed to handle error based on its Error Class;it is possible to define multiple catch blocks for each error class to perform different actions for different error categories.

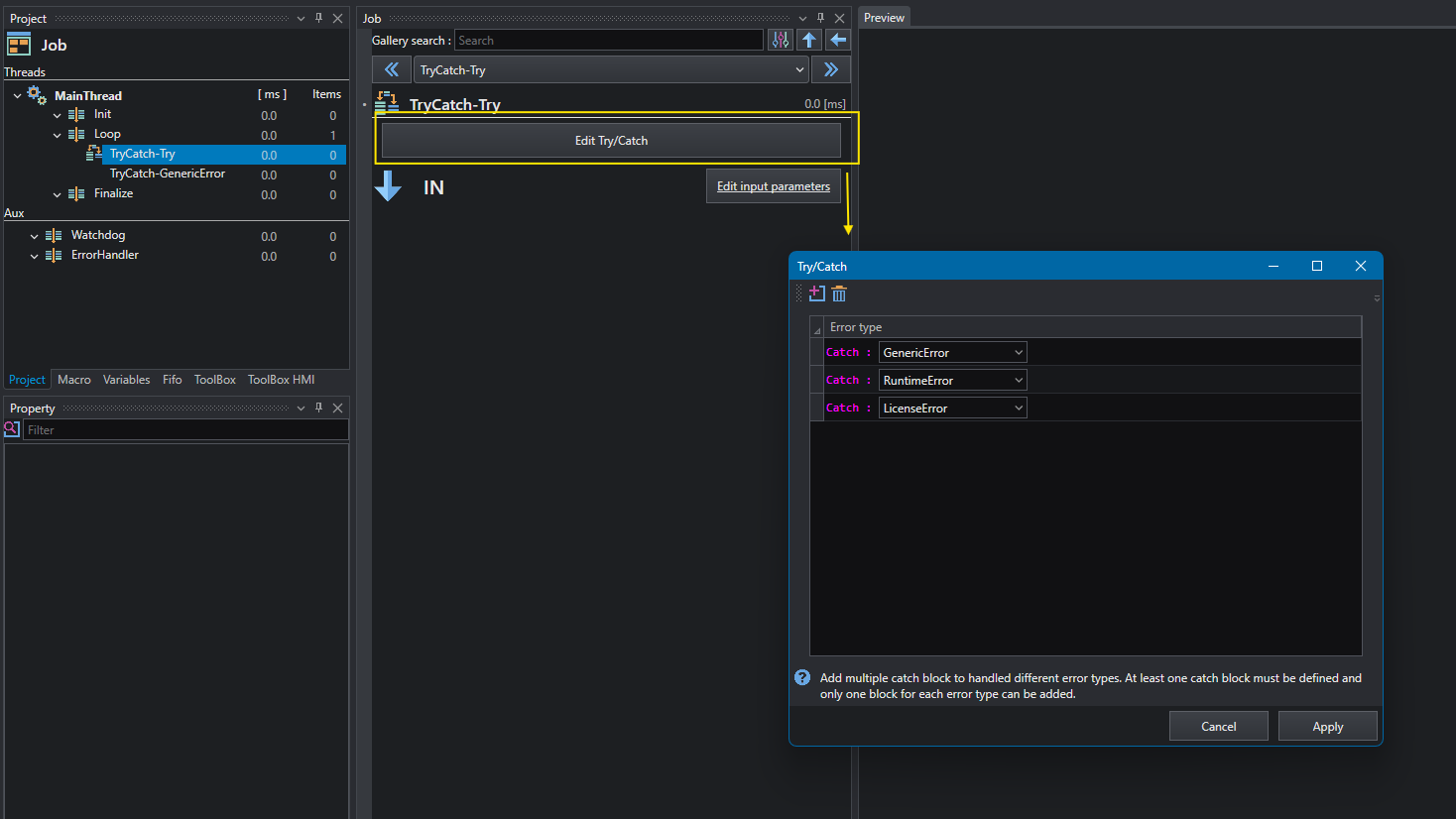

Open the editor to add or remove catch blocks.

Error
Error

Info

Only one catch block is allowed for each error class.

When a tool in the Try block fails, its ErrorStruct value is analyzed and the Catch block is chosen based on the Error class (got from ErrorCode); the catch block is then executed.The mechanism is similar to a Switch where the input value is an integer (the Error class value) and the catches are the switch cases.

Info

Inputs/Outputs are available for both the Try and Catch block, allowing to handle parameters also in case of error.

Info

When evaluating the Catch block to execute, the system searches if a catch for the given error class is defined;if not then the GenericError catch is searched.If no catch block satisfies these conditions, the Try/Catch block fails.

Programmer insight

Using multiple Error classes in Try/Catch is equivalent to the following code

    try
    {
        //... do stuff
    }
    catch(NullReferenceException e){ }
    catch(InvalidArgumentException e){ }
    catch(Exception e){ /*Generic error*/ }

Throw errors

User can decide to throw errors if custom conditions are reached even if tools are executed correctly; for example if a number of blobs is expected to be greater or equal to 5 it is possible to throw an error to trigger specific action when the number is less than 5.

This operation can be done with Statement.Throw which allows to throw an error with a specific error code and message. In alternative, it is possible to use Statement.Throw_FromErrorCode which allows to throw an error using one of the pre-defined error code as enum value.
